Rebar Spacers and Supports

Rebar spacers and supports are inset products made of polymeric materials that are designed to provide the required thickness of the safety concrete cover mounted between fiberglass building rebar and the constructional form.

Rebar spacer is a device that secures the rebar in reinforced concrete structures as the rebar is assembled in place prior to the final concrete pour to ensure the required thickness of the concrete cover. The concrete cover in composite concrete constructions is provided by placing fiberglass rebar at a small distance from the surface.

Concrete cover to reinforcement is required for well coordinated work of reinforcing bars in concrete constructions on all the stages, i.e. production, assembling and maintenance stages. Concrete protects the surface of reinforcing bars from environmental loads, such as high temperature, corrosive environment and many other factors. For planning the depth of concrete over the reinforcement the following parameters are taken into consideration: size and type of construction, diameter and designation of reinforcing bars, class and kind of concrete, application environment, etc.

Nowadays more and more often they use rebar spacers and supports for fiberglass rebar made of plastic materials and polyethylene plastics. These devices are known as plastic rebar spacers and supports. In the first place, the fact accounts for ultra-high quality of these products, and by the optimum combination of their features and cost. Due to this, inset rebar spacers and supports have an incredibly broad scope of applications. Rebar spacers and supports of the concrete cover can be used both in production process when items and constructions of composite concrete are manufactured, and for modern solid-cast buildings.

While manufacturing composite concrete constructions, it is necessary to rigidly observe the production technology and to provide one-to-one correspondence with set-up parameters. Modern construction companies, as well as plants manufacturing concrete products, also use plastic rebar spacers and supports in their work to form the concrete cover. Rebar spacers and supports are divided according to intended purposes and forms of construction. Today the most popular are the devices known as “chairs” and “stars”; several other types of rebar spacers and supports are also used in modern building and construction. So, rebar spacers and supports present a ubiquitously used construction material, which is applied in concrete constructions by practically all building companies.

You can buy constituent parts and spacers and supports for rebar at low prices in Chelyabinsk, just call to «Composite Group Chelyabinsk», and our specialists will help you select an optimal solution for your objectives. Addresses of retail offices and our telephones are published on the Contacts Page of our web-site. Below there is more detailed information about all kinds of rebar spacers and supports we sell, their features and prices.

Kinds of rebar spacers and supports

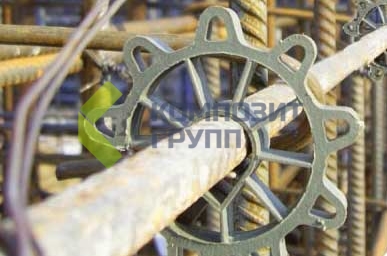

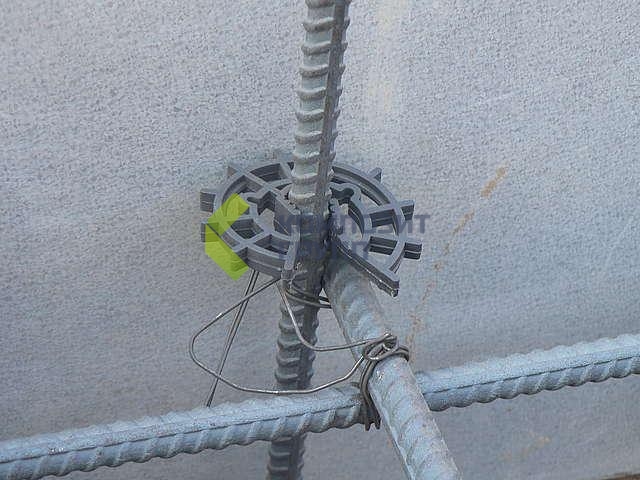

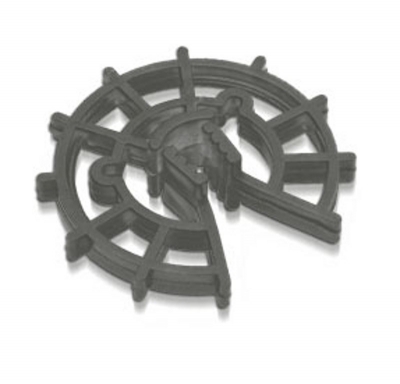

Rebar Spacer "Star"

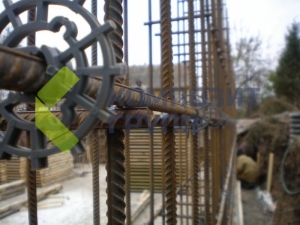

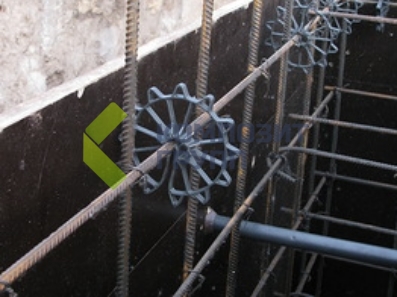

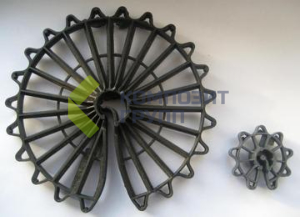

Rebar spacer “Star” is the most common device for creating necessary concrete cover between reinforcing bars and the edge of concrete in vertical solid-cast type constructions. Due to application of a new system of locks, the rebar spacer “Star” excellently holds its position on reinforcing bars. Rebar spacer “Star” does not “creep” in hot weather, and herewith it is sufficiently flexible under low temperatures. The given type of rebar spacers is mounted before grouting when constructing pillars, walls and collar beams. The figure in the code of the rebar spacer shows the depth of concrete to reinforcement in mm. It is applied with reinforcing bars with diameters from 4 mm to 20 mm and secures the concrete cover with depth from 15 mm to 60 mm.

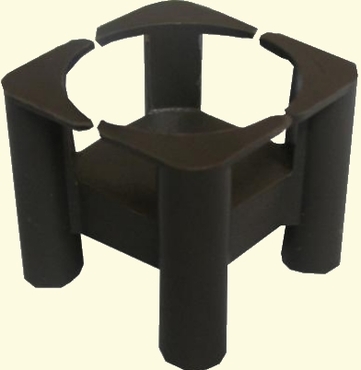

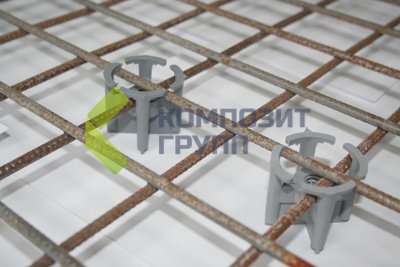

Rebar Spacer “Chair”

Rebar spacer “Chair” is designed to make concrete covers in horizontal solid-cast type constructions, and also to make filler concrete floor on the solid base. The given type of rebar spacers is very popular due to its low use rate, ease of use and low price. Rebar spacer “Chair” is mounted under reinforcing bars to provide the desired depth of concrete cover. The figure in the code of the rebar spacer shows the depth of concrete to reinforcement in mm. It is good for any temperatures, and it is applied with reinforcing bars with diameters from 4 mm to 14 mm to secure the concrete cover with depth from 20 mm to 40 mm.

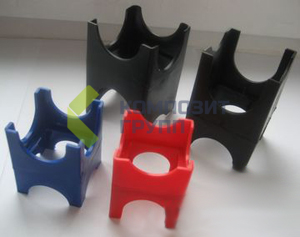

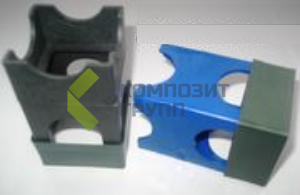

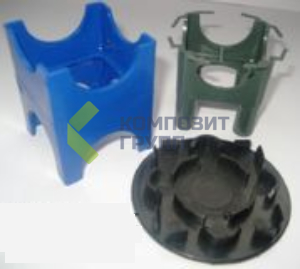

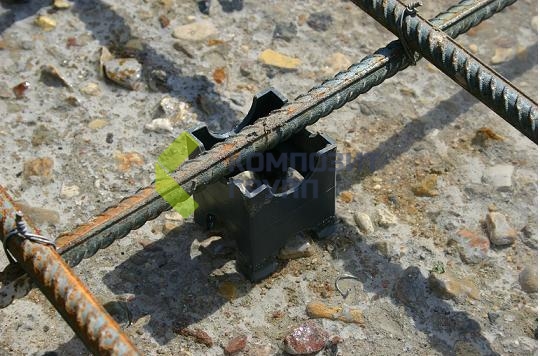

Rebar Support “Cube”

It presents a unified ceiling support, which unites simultaneously four concrete covers in one product. Minimum depth of the concrete cover is 35 mm, and maximum is 60 mm. For convenience's sake there are designed two types of rebar supports “Cube”: “Small Cube” with the following depths of concrete cover — 35, 40, 45 mm and “Big Cube” with the concrete cover of 50 mm deep. It is applied with reinforcing bars with diameters from 4 mm to 32 mm under any temperatures. Owing to its stability and simplicity of operation the given type of a rebar support is commonly used in many regions of the country.

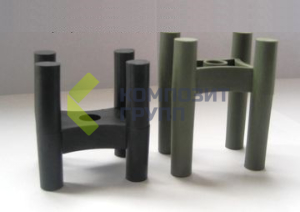

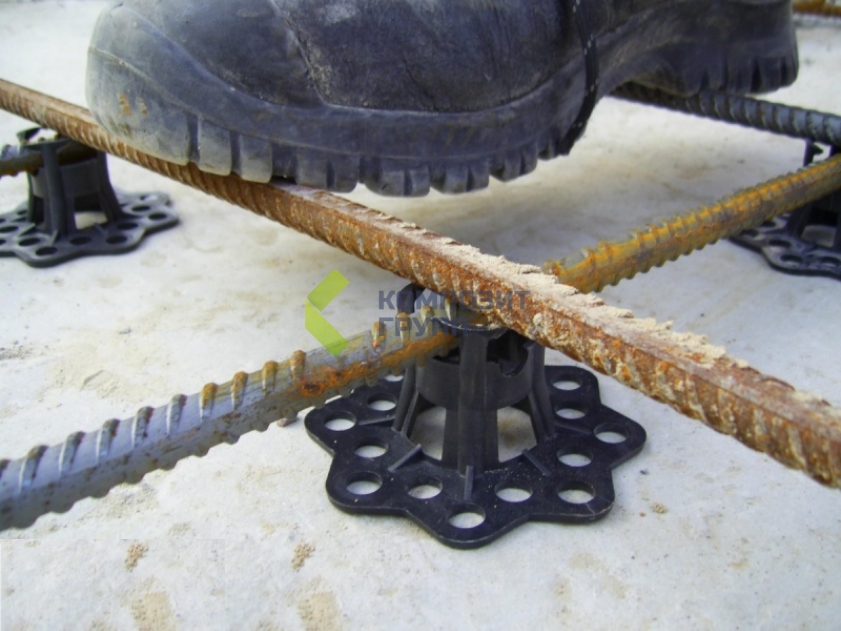

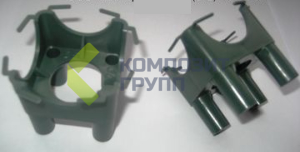

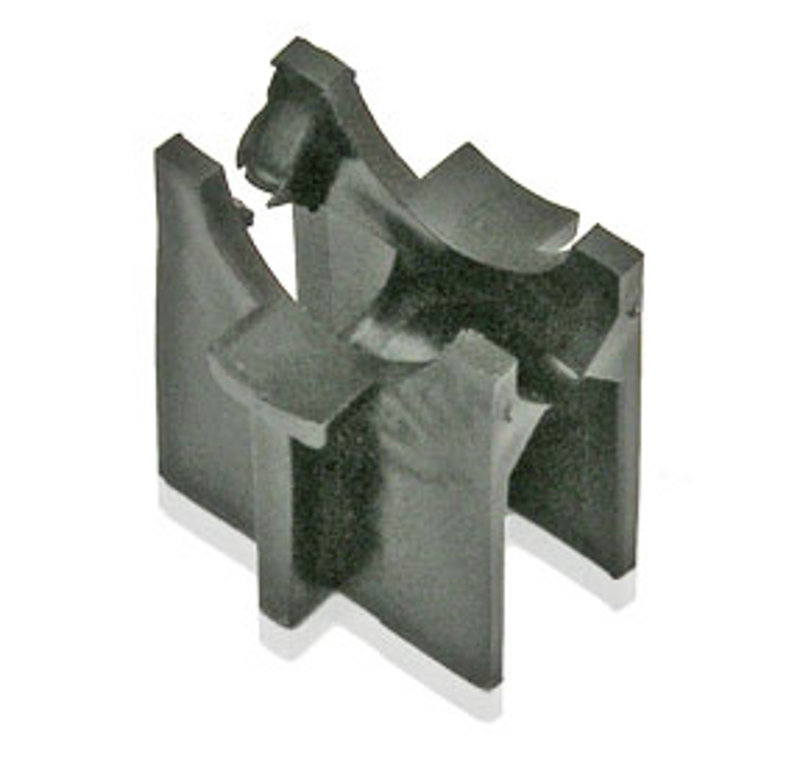

Rebar Support “Stand FSU” (tower-like universal rebar support)

The given rebar support is designed to construct floor structures and secure concrete covers in horizontal faces.

The major advantage of the rebar support “Stand FSU” is that it excellently fixes the concrete cover. It is applied with reinforcing bars of diameters up to 18mm. The depth of concrete over the reinforcement is 15, 25 mm.

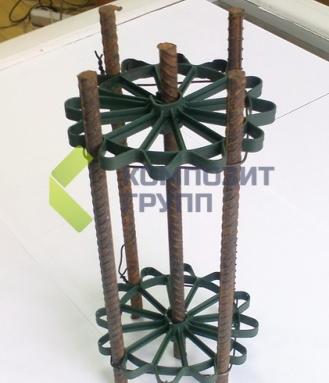

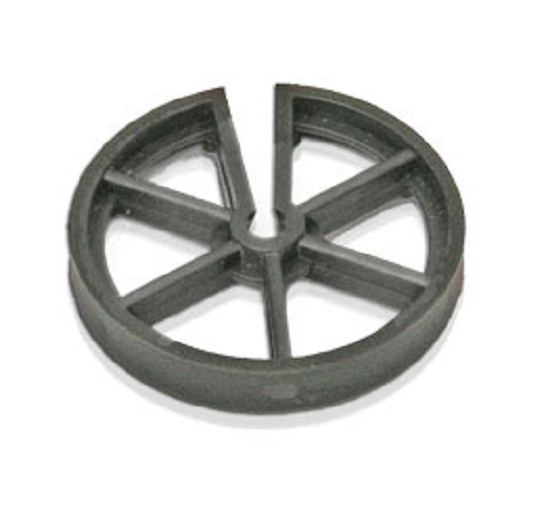

Rebar Support “Wheel”

It is used to make concrete covers in vertical planes. It has five ribbed stiffeners. It is applied with reinforcing bars with diameter of 5 mm (supports 5/30). It secures the depth of concrete to reinforcement of 30 mm.

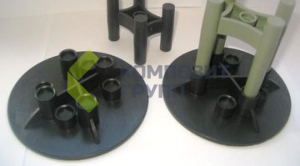

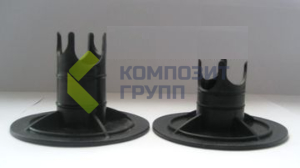

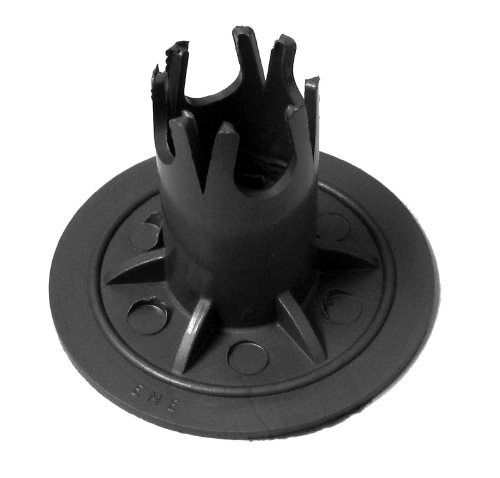

Tower-like Rebar Support “Stand FS for Loose Ground”

It is used to make concrete covers on a loose ground. It substitutes two rebar spacers and supports – a chair and a holder, besides, the resulting construction is cheaper and stronger. It secures the depth of concrete to reinforcement of 30 mm and 40 mm.

Rebar Spacers and Supports Catalogue of «Composite Group Chelyabinsk»

No.	Name of the product	Description, characteristics	Type
1	Universal rebar spacer No.20\5-16 "Star"	Ø rebar spacer from 5 to 16 mm, concrete cover 20mm
2	Universal rebar spacer No.25\5-16 "Star"	Ø rebar spacer from 5 to 16mm, concrete cover 20mm
3	Universal rebar spacer No.30\8-22 "Star"	Ø rebar spacer from 8 to 22 mm, concrete cover 30 mm
4	Universal rebar spacer No.35\6-22 "Star"	Ø rebar spacer from 6 to 22 mm, concrete cover 35 mm
5	Universal rebar spacer, No.40\6-18 "Star"	Ø rebar spacer from 6 to 18 mm, concrete cover 40mm
6	Universal rebar spacer, No.50\10-22 "Star"	Ø rebar spacer from 10 до 22 мм, concrete cover 50 мм
7	Universal rebar support (tower-like universal rebar support) “Stand FSU” 15\25	Ø rebar support from 4 to 25mm concrete cover 25mm rebar support from 4 to 16mm concrete cover 15mm
8	Rebar support “Stand FSU” (tower-like universal rebar support) 10\15\20\25 "Invert"	Universal rebar support rebar support from 4 to 20 mm, concrete cover 10\15\20\25
9	Ceiling support 35\40\45\50, "Cube"	Ø rebar spacer from 4 to 28 mm, concrete cover 35\40\45\50 mm
10	Ceiling support 60/50, 70/80 "Cube"	Ø rebar spacer from 4 to 40 mm, concrete cover 80/70/60/50 mm
11	Rebar spacer “Chair” 20mm with 5 supports	Ø rebar spacer from 4 to 14 mm, concrete cover 20 mm
12	Rebar spacer “Chair” 25mm with 5 supports	Ø rebar spacer from 4 to 14 mm, concrete cover 25mm
13	Rebar spacer “Chair” 30mm with 5 supports	Ø rebar spacer from 4 to 14 mm, concrete cover 30 mm
14	Rebar spacer “Chair” 35mm with 5 supports	Ø rebar spacer from 4 to 14 mm, concrete cover 35 mm
15	Rebar spacer “Chair” 40mm with 5 supports	rebar spacer from 4 to 14 mm, concrete cover 40 mm
16	Universal rebar spacer FT	Ø rebar spacer 5, 8, 10, 16, concrete cover 15 mm
17	Rebar support Multistage stand 20-25-30-35	diameter of the rebar from 5 to 25 mm, concrete cover = 20, 25, 30 and 35 mm
18	Rebar support “Stand FS-30 for Loose Ground”	Ø rebar spacer from 5 to 20 mm, concrete cover 25 30 mm
19	Rebar support “Stand FS-40 for Loose Ground”	Ø rebar spacer from 5 to 20 mm, concrete cover 35 40mm
20	Stand for Loose Ground	Is used with rebar spacers of the horizontal concrete cov

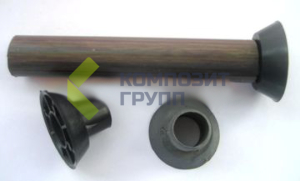

21	Cone	Secures a firm contact of protective tubes with constructional forms
22	PVC tube Ø25mm L=3 m	PVC constructional tube, outer Ø25 mm, internal Ø22mm
23	PVC electroconductive tubes, to Ø75mm
24	Blind joint PP-22	Is used with PVC and polyethylene plastics tubes with diameter of 25mm

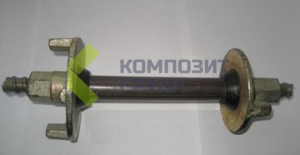

25	Coupling screw, length from 0,8m to 3m, possible to order up to 12m	is used to fix parallel concrete form panels
26	Screw nut for the coupling screw Ø90mm
27	Screw nut for the coupling screw Ø100mm
28	Plastic underlayment	3*200 (100pcs )
		4*200 (100pcs )

Photographs of Rebar Spacers and Supports

Application Examples, Photographs

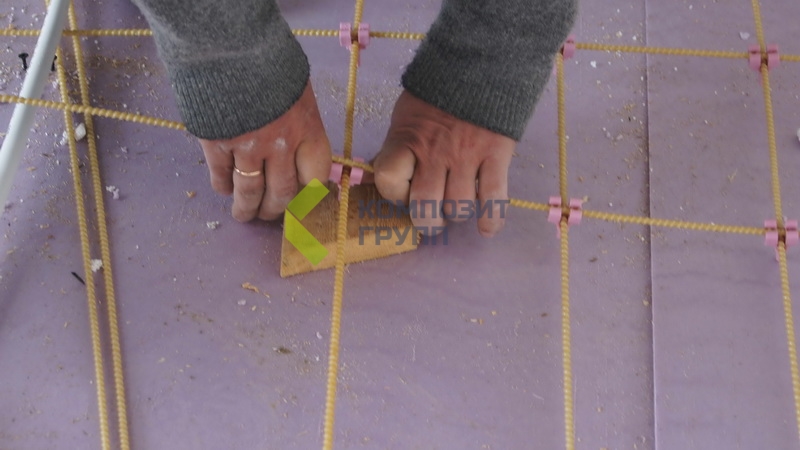

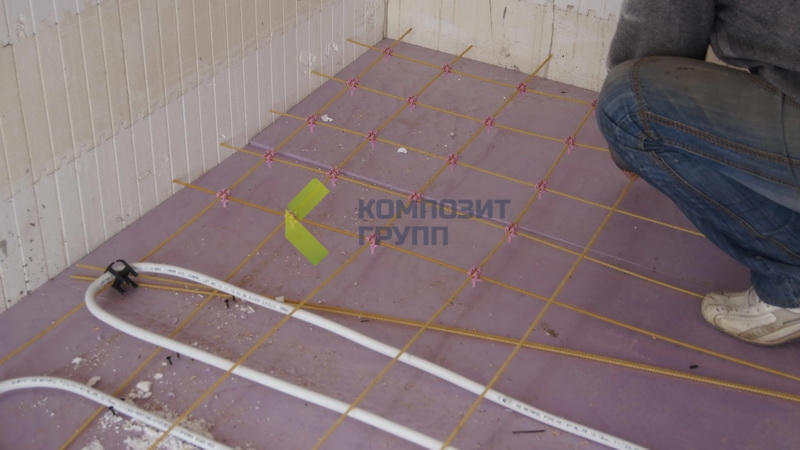

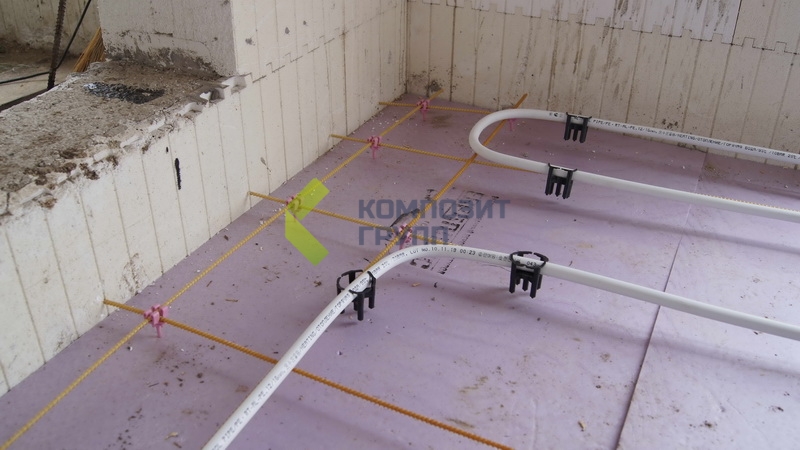

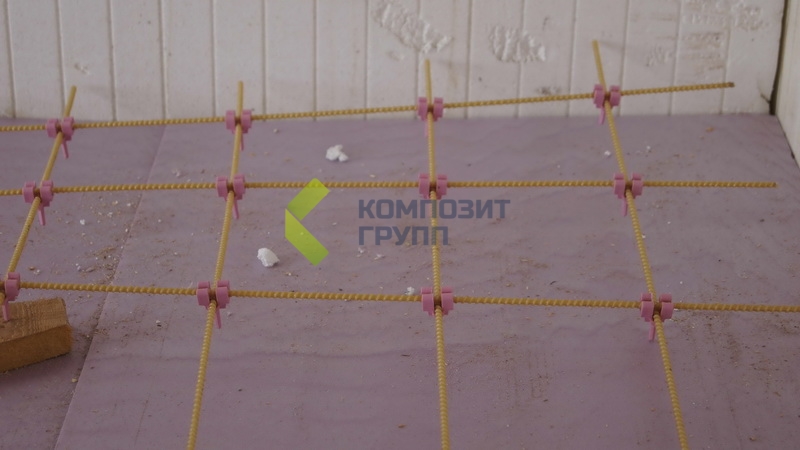

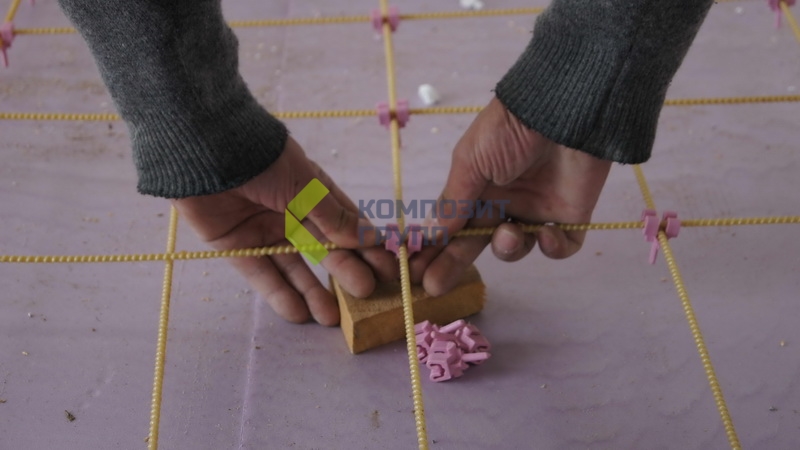

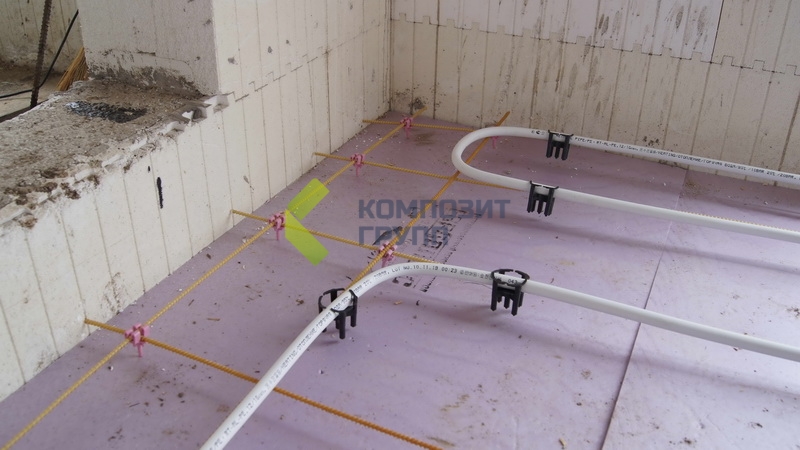

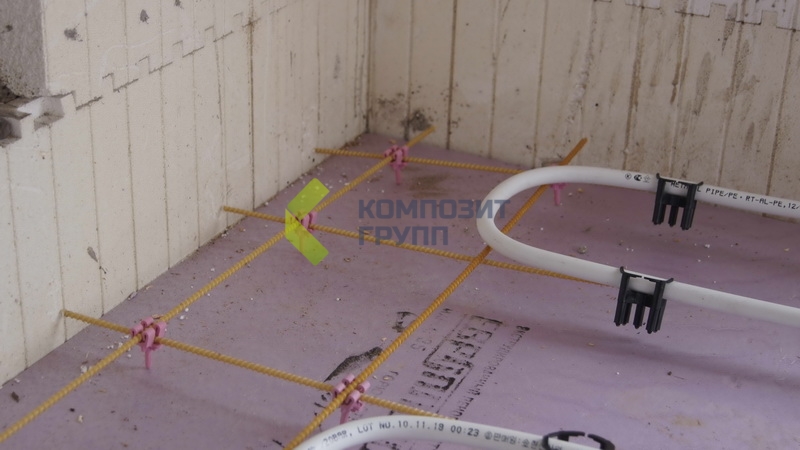

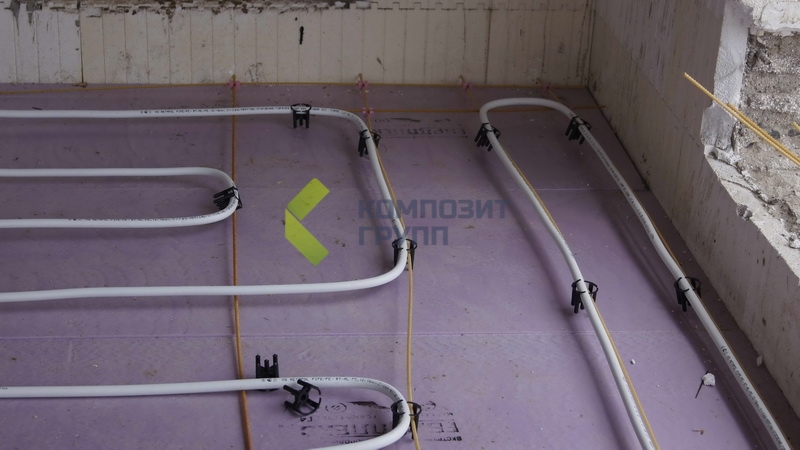

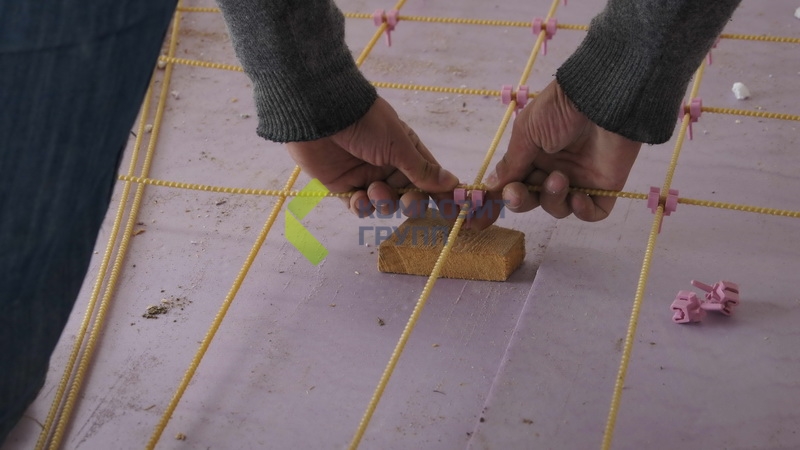

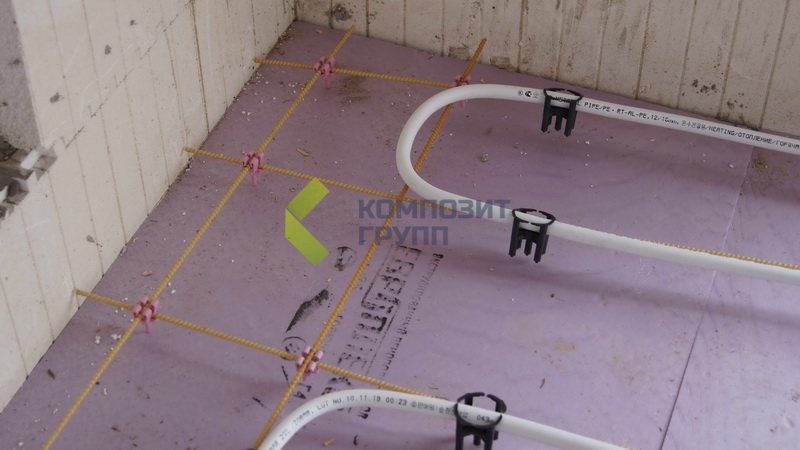

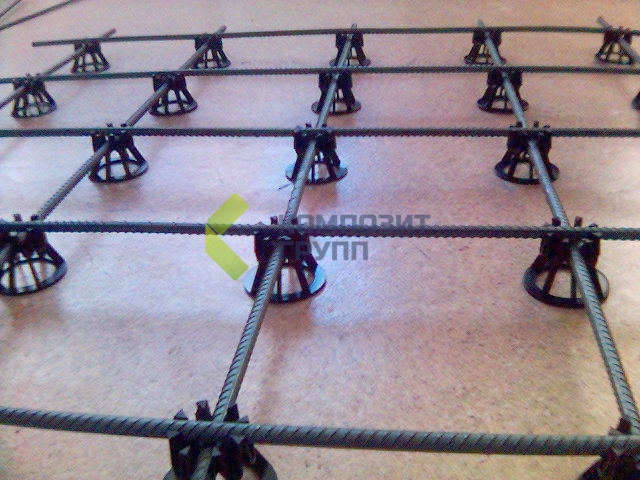

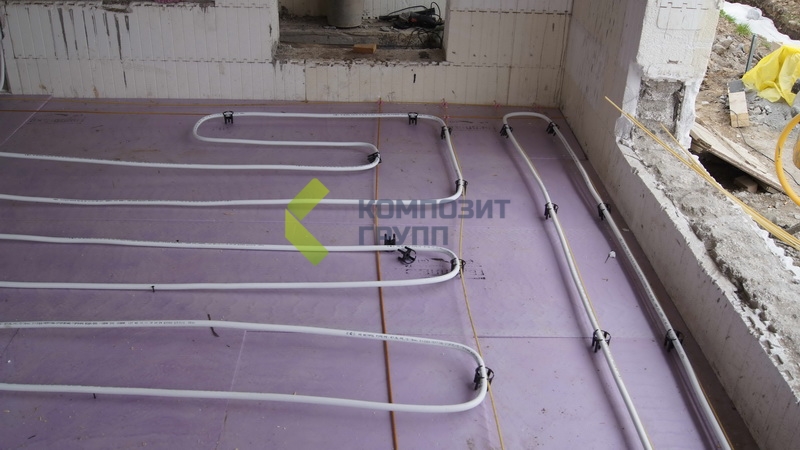

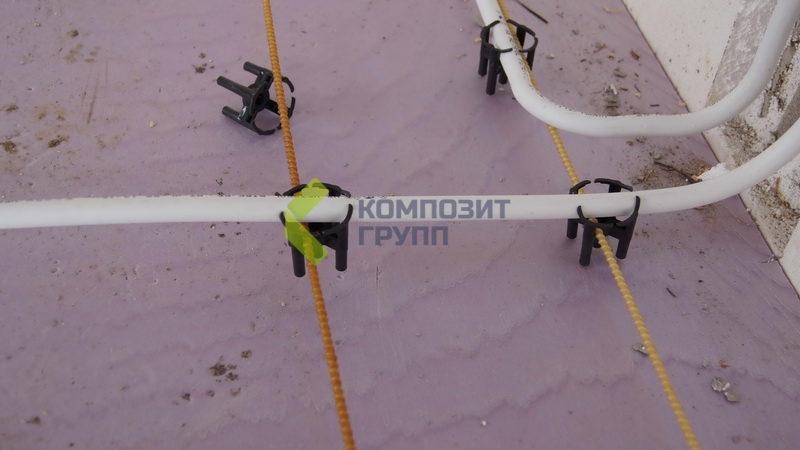

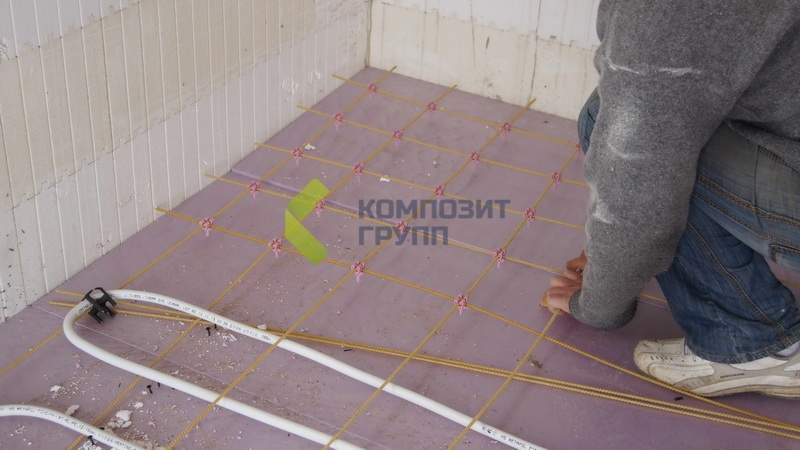

Assembling of Warm Floor Areas

Fiberglass rebar spacers and supports “Chair” and “Squid” are used.

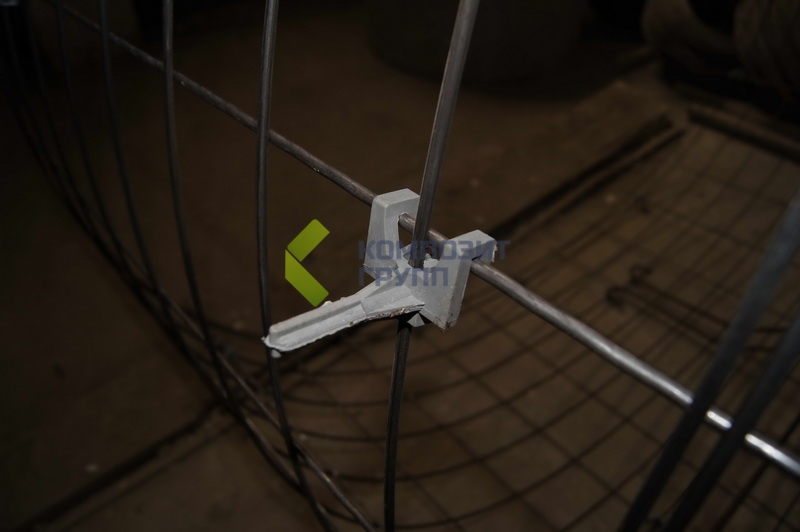

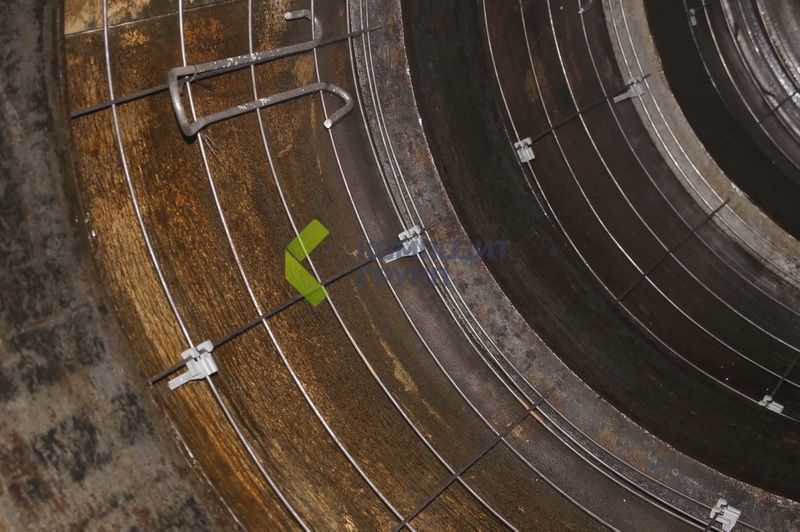

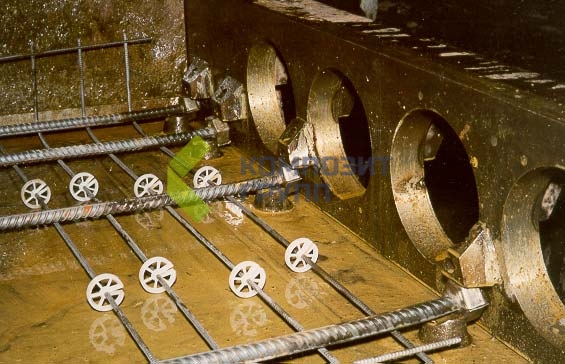

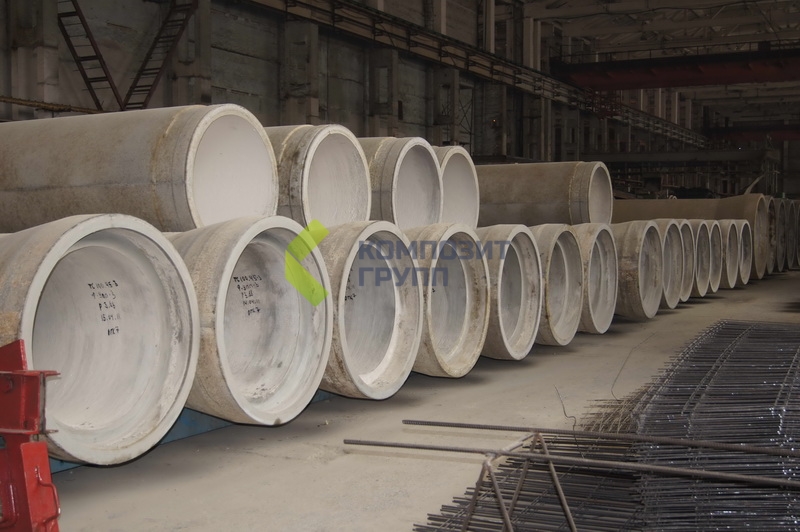

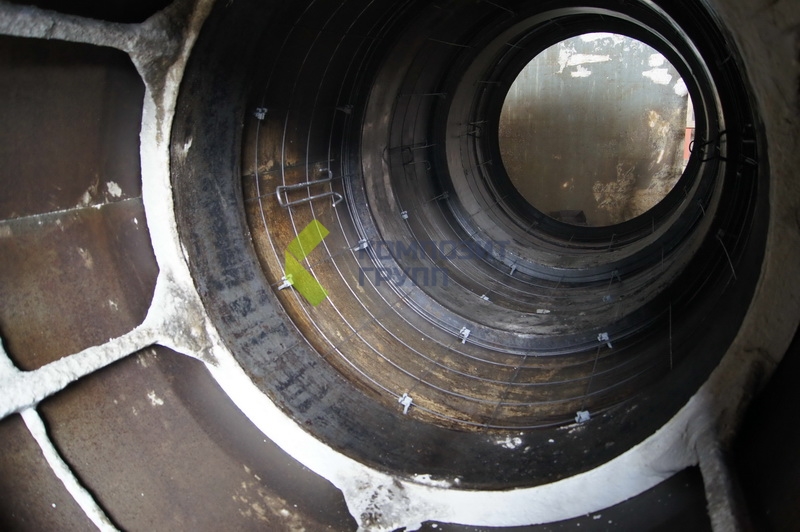

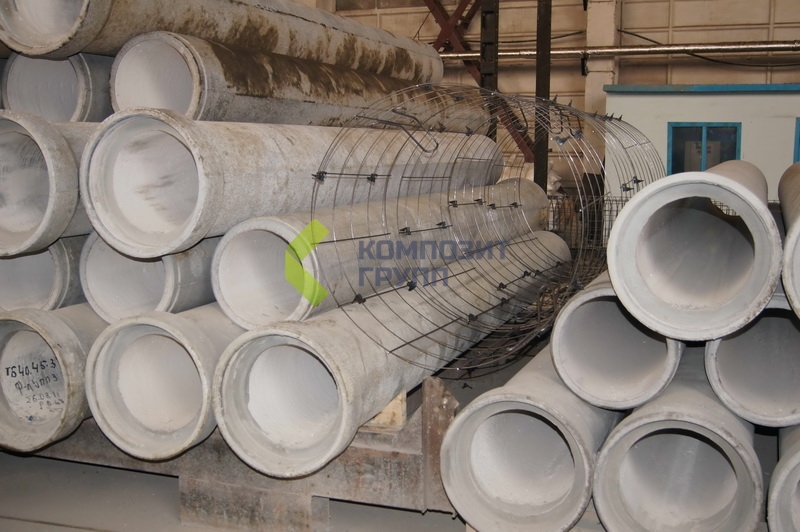

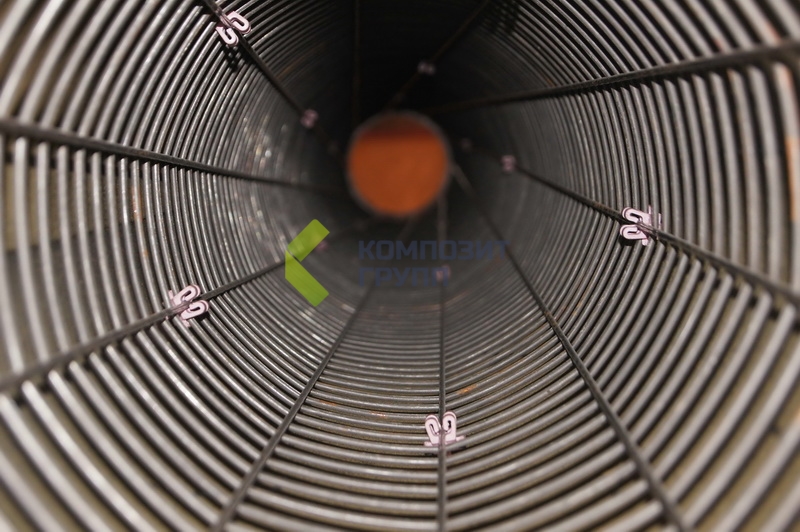

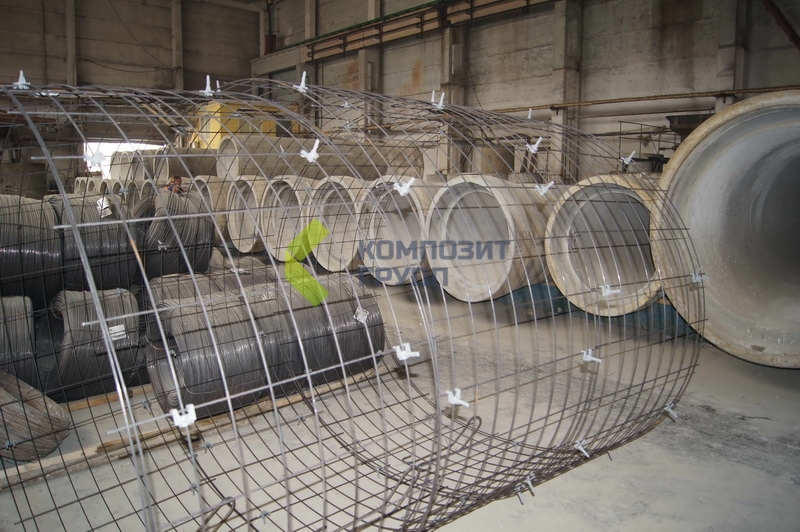

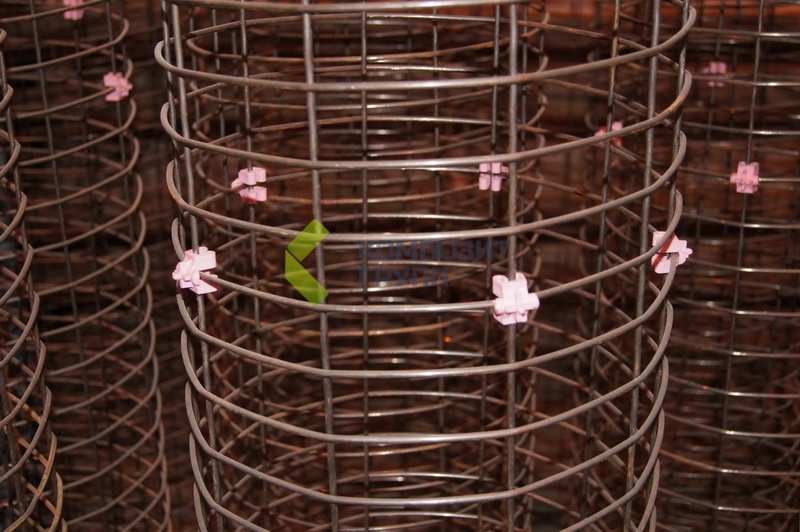

Production of Reinforced Concrete Pipes and Rings

Rebar spacers and supports “Crab” and “Squid” are used.

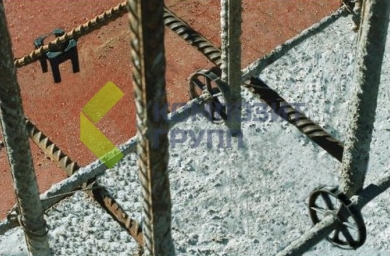

Examples of Other Applications
