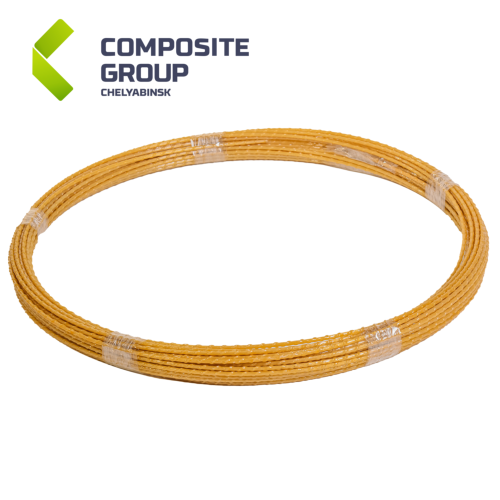

PRODUCTION LINE FOR MANUFACTURING OF FIBERGLASS REBAR, FRP MAKING MACHINE

Production line for the manufacturing of Fiber Reinforced Polymer Rebar intended to produce rebars with a diameter from 4 to 18 mm, of any desired length. Depending on the diameter, it can produce from 500 to 1000 meters of rebar per hour. Download the specification (PDF).

SPECIFICATION

Line Features:

• Consistent product quality

• Simultaneous production of up to 4 rebars

• Increased working time with the finishedmixture due to the heating system

• Adjustment by the operator of the drawing speed and the pitch of the rebar

Line Parameters:

Line length, m	18
Line width, m	1
Line height, m	1.5
Installed power, kW	18
Water consumption, l/day	15
Air consumption, l/h	90
Diameter of manufactured rebars, mm	4-32
Length of manufactured rebars, m	unlimited

Line Performance:

• Up to 5000 per shift (D=10-12 mm)
• Up to 10000 per shift (D=4-8 mm)

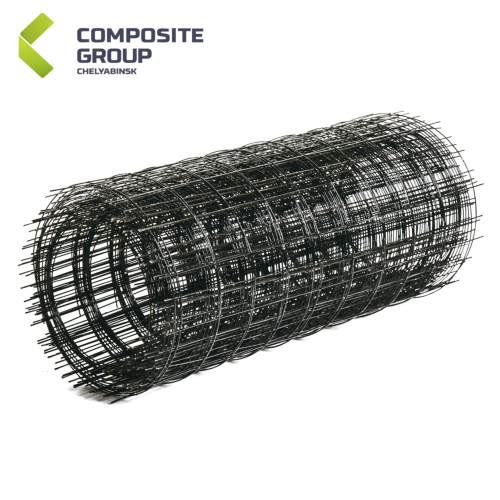

PRODUCTION LINE FOR MANUFACTURING OF FIBERGLASS MASONRY MESH WITH A REBAR DIAMETER FROM 2 TO 12 MM

SPECIFICATION

Line Features:

• Most durable connection

• Simultaneous production of a transverse bar and mesh

• Formation of non-standard cell: 100x70, 100x50, 150x200, 200x90 etc.

• Installation of a coilwinding machine on request

Line Parameters:

Line length, m	27
Line width, m	depends on the model
Line height, m	2.5
Installed power, kW	43
Water consumption, l/day	15
Air consumption, l/h	90
Mesh width, mm	1000/2000/3000
Mesh length, m	unlimited

Line Performance:

150 m²/h (on the example of a mesh with bar diameter D=2.5 mm, cell size 100x100 mm, 150x150 mm, 200x200 mm)

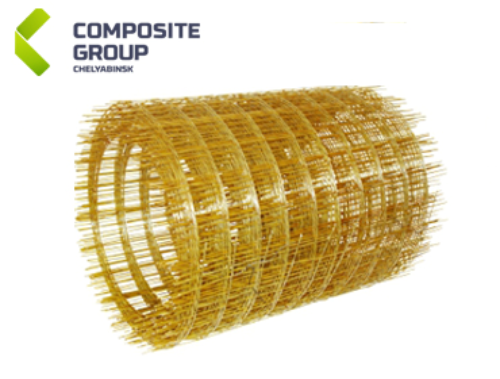

PRODUCTION LINE FOR MANUFACTURING OF FIBERGLASS MASONRY MESH BY THE “TWISTING” METHOD

Download the specification (PDF)

SPECIFICATION

Line Features:

• Low reject rate

• Saving materials and time

• Parallelism and smoothness of the formation of meshes through the use of track pulling

• Adjustment by mesh parameters by the line operator

Line Parameters:

Line length, m	23
Line width, m	depends on the model
Line height, m	2.5
Installed power, kW	35
Water consumption, l/day	15
Air consumption, l/h	90
Mesh width, mm	500/1000/2000/3000
Mesh length, m	unlimited

Line Performance:

• 60 m²/h (cell size 50x50 mm)

• 90 m²/h (cell size 100x100 mm, 150x150 mm, 200x200 mm)

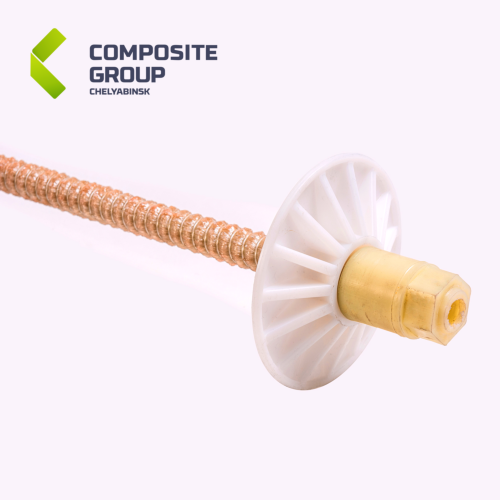

PRODUCTION LINE FOR MANUFACTURING OF FLEXIBLE CONNECTIONS

Production line for the manufacturing of  Fiber Reinforced Polymer Reinforcing Flexible Connections (Ties) used for connecting the carrier and facing layers of multi-layer enclosing structures allows you to continuously produce flexible connections with anchor thickenings with length from 250 mm.

SPECIFICATION

SPECIFICATION

Line Features:

• High precision cutting in the production of flexible connections

• Pneumatic actuators

• Adjustment by the operator of the length of the finished product  and the number of cuts

• Equipped with the connector  for an industrial vacuum cleaner

Line Parameters:

Line length, m	15
Line width, m	1
Line height, m	1.5
Installed power, kW	15
Working power per hour, kW	10
Water consumption, l/day	15
Air consumption, l/h	90

Line Performance:

Up to 300 m/h

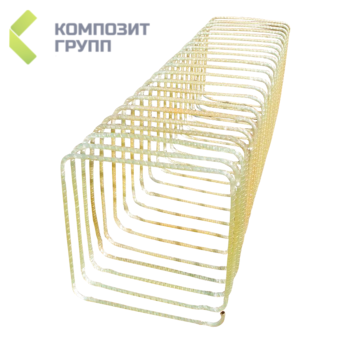

PRODUCTION LINE FOR MANUFACTURING OF COMPOSITE BENT ELEMENTS

Production line for the manufacturing of Glass Fiber Reinforced Polymer Bent Elements with diameter from 2 to 24 mm.

SPECIFICATION

Line Features:

• Production of G-and U-shaped bent parts up to 1500x1000 mm


• Production of trapezoidal parts with a distance between  tops of the sinusoid up to 150 mm and a depth from the top to the bottom point up to 1000 mm

• Allows to bent corners of parts with a radius of up to 100 mm

Line Parameters:

Line length, m	14
Line width, m	1,5
Line height, m	1.5
Installed power, kW	15
Water consumption, l/day	15
Air consumption, l/h	90

Line Performance:

Up to 1000 meters per shift (depending on rebar diameter)

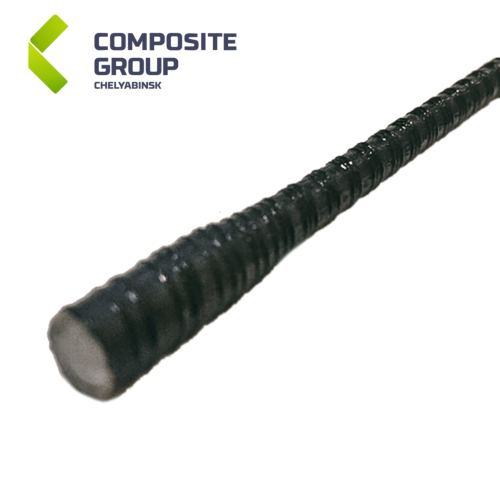

PRODUCTION LINE FOR MANUFACTURING OF COMPOSITE PIT BARRING

SPECIFICATION

SPECIFICATION

Line Features:

• Adjustment of the step of the periodic profile, the length of the finished product, the drawing speed, control of the number of cuts by the line operator

• Equipping the line with roving pre-heating and liquid cooling systems with a circulation pump

Line Parameters:

Line length, m	18
Line width, m	1
Line height, m	1.5
Installed power, kW	18
Ventilation performance, m2/h	2000
Water consumption, l/day	15
Air consumption, l/h	90



Line Performance:

• 800 m per shift (D=26-40 mm)

• 1000 m per shift (D=22-25 mm)

• 1200 m per shift (D=16-20 mm)

TO ORDER

To order fiberglass rebar (FRP) making machine, GFRP and GRP rebar production line, BFPR rebar manufacturing please call from telephon +7(351)2163300, or e-mail to Этот адрес электронной почты защищен от спам-ботов. У вас должен быть включен JavaScript для просмотра.
